Mogneville, Saint-Denis
capitals in each phase
Building Data for Mogneville, Saint-Denis
- Type: Parish
- Affiliation:
- Region: Picardie
- Department: Oise
- Coords: 49.314, 2.4725
- Surveyed: 1977, 1980-83, 2005, 2014
Virtual Tour
| Studies |
X
These draft studies have been written as if all carvings were by an individual whereas they can equally be analysed as template modes employed by a number of carvers. The more personal approach was necessitated by the complexity of the data. The drafts will be reconsidered after I have added the rib vault material to the database. |
Capitals for Mogneville, Saint-Denis
X
The building sequence is based on my on-site analysis of the construction history,
using the techniques developed on the cathedral of Chartres called toichology, and described in a number of publications.
The analysis of some of the smaller churches are more approximate than I would like, and need further analysis.
I have used 'phase' rather than 'campaign' to to identify a contiguous zone with similar elements.
A campaign would be defined by recognisable breaks and construction joints in the fabric: there may be a number of phases within a campaign.
One benefit is that separate programs by subcontractors, such as carvers, may be isolated, which is particularly useful in complex sections, such as portals.
Every phase has been assigned to a decade, so there may be more than one phase in a decade.
While this is certainly imperfect, it will allow us to explore all the data, including costs, across time.
This is an on-going process, so as the data continues to be analyzed, the chronology and costing analysis will be further refined, and the synopsis updated.
Clicking on any of the decade graphics will display all buildings that had work being done during that decade.
The building sequence is based on my on-site analysis of the construction history, using the techniques developed on the cathedral of Chartres called toichology, and described in a number of publications. The analysis of some of the smaller churches are more approximate than I would like, and need further analysis.
I have used 'phase' rather than 'campaign' to to identify a contiguous zone with similar elements. A campaign would be defined by recognisable breaks and construction joints in the fabric: there may be a number of phases within a campaign. One benefit is that separate programs by subcontractors, such as carvers, may be isolated, which is particularly useful in complex sections, such as portals.
Every phase has been assigned to a decade, so there may be more than one phase in a decade.
While this is certainly imperfect, it will allow us to explore all the data, including costs, across time. This is an on-going process, so as the data continues to be analyzed, the chronology and costing analysis will be further refined, and the synopsis updated.
Clicking on any of the decade graphics will display all buildings that had work being done during that decade.
|
Phase 4 - 1100s [1102] - south
south chapel capitals to nave entry to west (a-) and arch to start of south window; this wall on the south continuous from SC shaft to opening into nave and therefore these caps by Group 3 are before Group 1; also there is a half-arch in this wall against the crossing suggesting a doorway, that can be viewed in full on the nave side and shows that the arch is before the crossing shafts that are bonded into the infill under the arch, and bonded over the little arch into the side of the arch into the nave.
Load More...
Rationale for dating : group 1 capitals numbered "1" in MCS#13 [*MCS - Faceter]
|
|
|

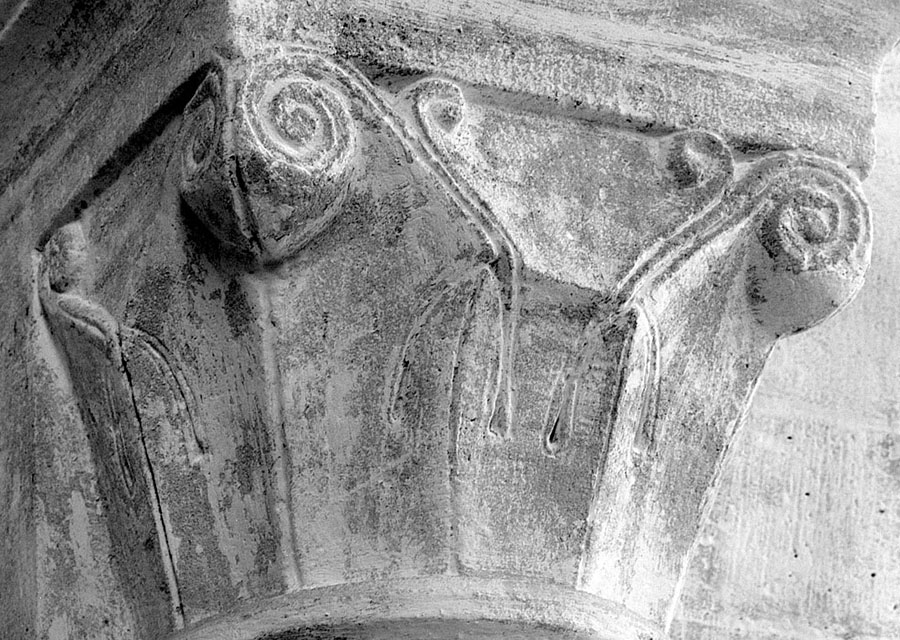

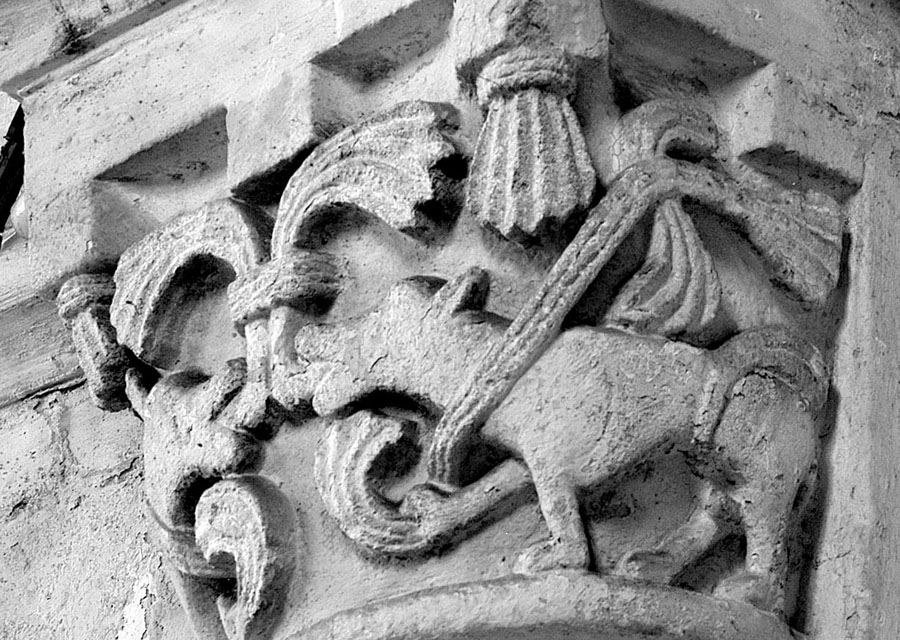

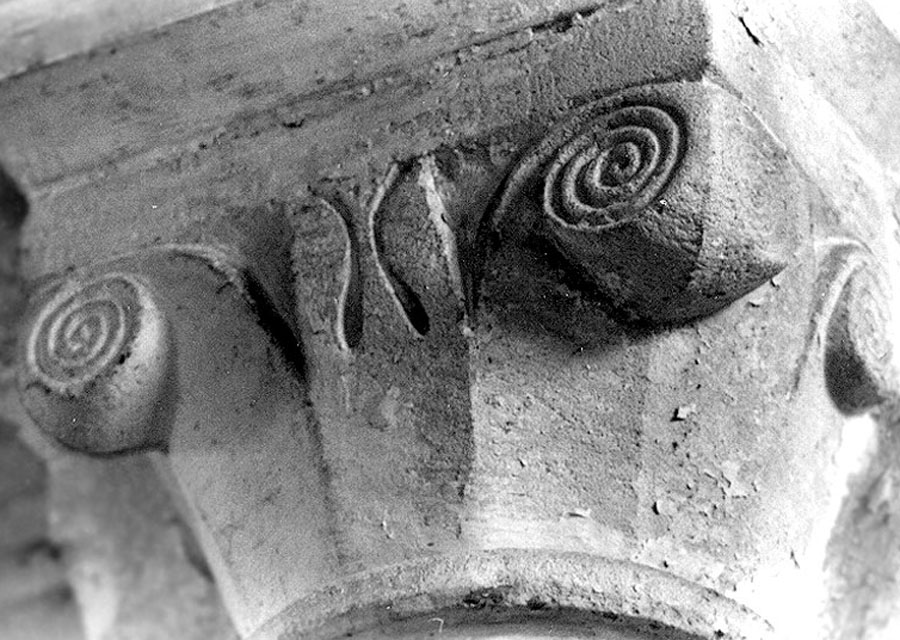

Phase 5 - 1100s [1103] - crossing (a-)
both chapel pier capitals flanking the chapel entries (a-) and NC entry arch carved together and showing that there were breaks here because arches need time to settle; includes start of nave arcade north side two courses lower than entry into north transept
Rationale for dating : group 2 capitals [*MCS - Faceter]
|
-
- Faceter - ! - 1100s [1103]
- Mogneville- Phase 5
- Saint-Denis - crossing (a-)
- Variation of master's core template, possibly with an associate
-
- Firedog - 1100s [1103]
- Mogneville- Phase 5
- Saint-Denis - crossing (a-)
- Core template
-
- Firedog - 1100s [1103]
- Mogneville- Phase 5
- Saint-Denis - crossing (a-)
- Core template
-
- Firedog - 1100s [1103]
- Mogneville- Phase 5
- Saint-Denis - crossing (a-)
- Core template
-
- Unknown - 1100s [1103]
- Mogneville- Phase 5
- Saint-Denis - crossing (a-)
- total uncertainty
|
|

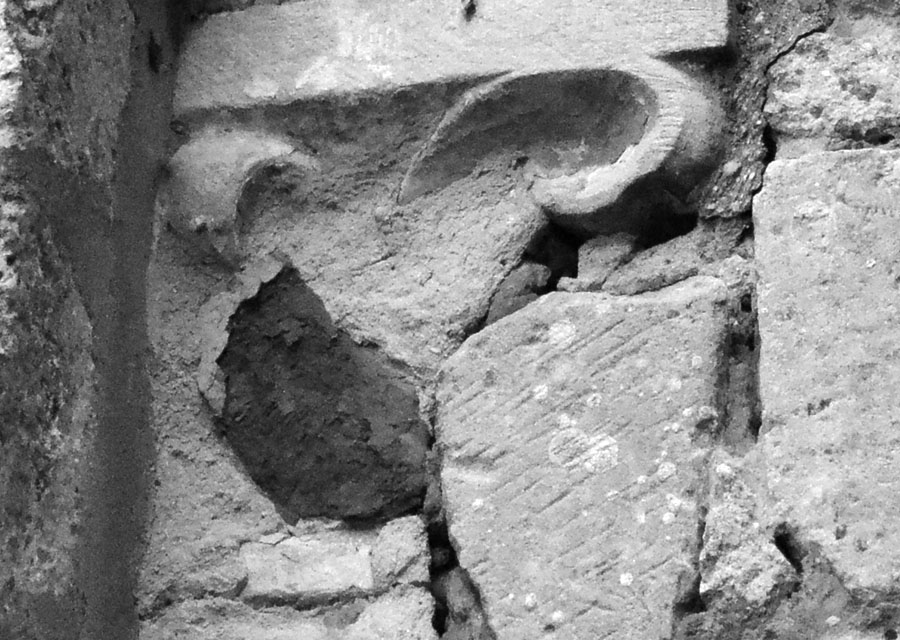

Phase 6 - 1100s [1107] - w crossing
west crossing piers and capitals around the crossing with crossing arch including NW1ne rib shaft and the tower buttresses are butted into the nave; the south side of the arch into the nave is a couple of courses lower than the north
Rationale for dating : capitals group 3 [*MCS - Faceter]
|
-
- Unknown - 1100s [1107]
- Mogneville- Phase 6
- Saint-Denis - w crossing
- total uncertainty
-
- Unknown - 1100s [1107]
- Mogneville- Phase 6
- Saint-Denis - w crossing
- total uncertainty
-
- Unknown - 1100s [1107]
- Mogneville- Phase 6
- Saint-Denis - w crossing
- total uncertainty
-
- Unknown - 1100s [1107]
- Mogneville- Phase 6
- Saint-Denis - w crossing
- total uncertainty
-
- Unknown - 1100s [1107]
- Mogneville- Phase 6
- Saint-Denis - w crossing
- total uncertainty
|
Phase 7 - 1110s [1110] - south-w (a-)
entry into future south aisle
Rationale for dating : group 4 [*MCS - Banniere - Firedog]
|
-
- Unknown - 1110s [1110]
- Mogneville- Phase 7
- Saint-Denis - south-w (a-)
- total uncertainty
-
- Unknown - 1110s [1110]
- Mogneville- Phase 7
- Saint-Denis - south-w (a-)
- total uncertainty
-
- Unknown - 1110s [1110]
- Mogneville- Phase 7
- Saint-Denis - south-w (a-)
- total uncertainty
-
- Unknown - 1110s [1110]
- Mogneville- Phase 7
- Saint-Denis - south-w (a-)
- total uncertainty
|
|
Phase 8 - 1110s [1111] - south (v)
south vault capitals S-s clerestory with location of joint indicated in south window frame; the ribs are butted into earlier crossing arch; there is an oculus in west wall
Rationale for dating : Capitals group 5 [*MCS - Faceter - SS Master]
|
-
- Layered - ! - 1110s [1111]
- Mogneville- Phase 8
- Saint-Denis - south (v)
- Core template
-
- Unknown - 1110s [1111]
- Mogneville- Phase 8
- Saint-Denis - south (v)
- total uncertainty
-
- Unknown - 1110s [1111]
- Mogneville- Phase 8
- Saint-Denis - south (v)
- total uncertainty
-
- Unknown - 1110s [1111]
- Mogneville- Phase 8
- Saint-Denis - south (v)
- total uncertainty
|
|
Phase 9 - 1110s [1113] - north (v)
North vault capitals in 3 corners, ribs built with wall but butted into crossing arch with the north window
Rationale for dating : Capitals Group 6; SS Master A for 1112 as this suits the evolution of his juvenile style.
|
-
- Unknown - 1110s [1113]
- Mogneville- Phase 9
- Saint-Denis - north (v)
- total uncertainty
-
- Faceter - ? - 1110s [1113]
- Mogneville- Phase 9
- Saint-Denis - north (v)
- total uncertainty
-
- SS Master - !? - 1110s [1113]
- Mogneville- Phase 9
- Saint-Denis - north (v)
- While an apprentice, design was being evolved
-
- Unknown - 1110s [1113]
- Mogneville- Phase 9
- Saint-Denis - north (v)
- total uncertainty
|
|

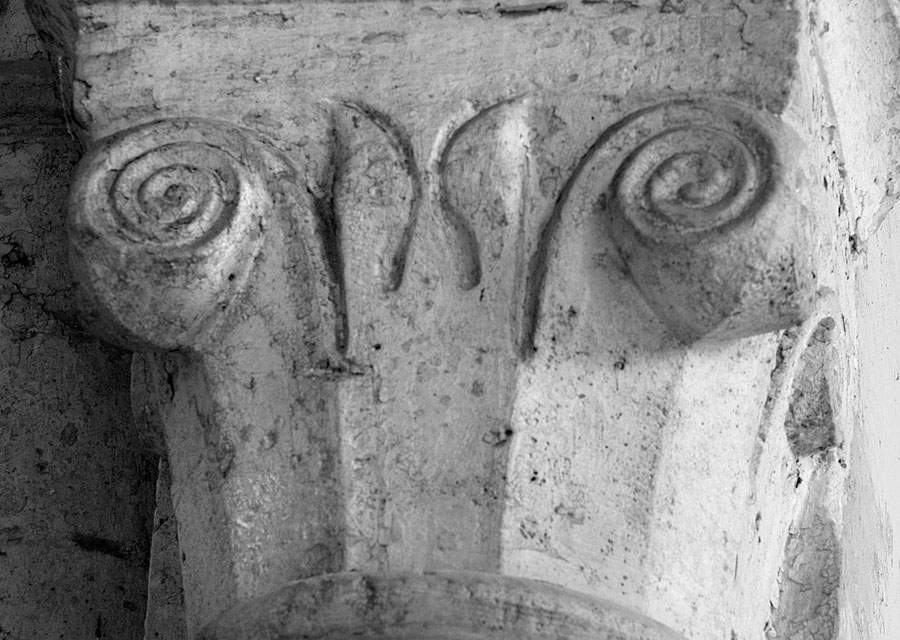

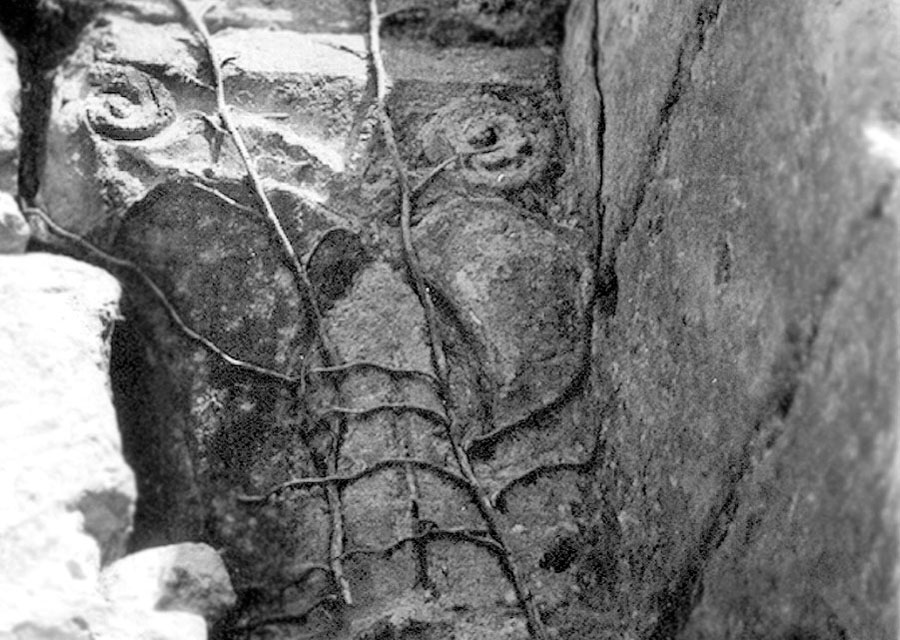

Phase 10 - 1110s [1115] - apse
eastern rectangular bay, capitals and vaults with the east wall and window, and the whole assembly was butted against the crossing and chapel walls
Rationale for dating : capitals group 7 [*MCS - Faceter]
|
-
- Faceter - !! - 1110s [1115]
- Mogneville- Phase 10
- Saint-Denis - apse
- Core template
-
- Faceter - !! - 1110s [1115]
- Mogneville- Phase 10
- Saint-Denis - apse
- Core template
-
- Faceter - !! - 1110s [1115]
- Mogneville- Phase 10
- Saint-Denis - apse
- Core template
-
- Faceter - !? - 1110s [1115]
- Mogneville- Phase 10
- Saint-Denis - apse
- Core template, details suggest another carver
|

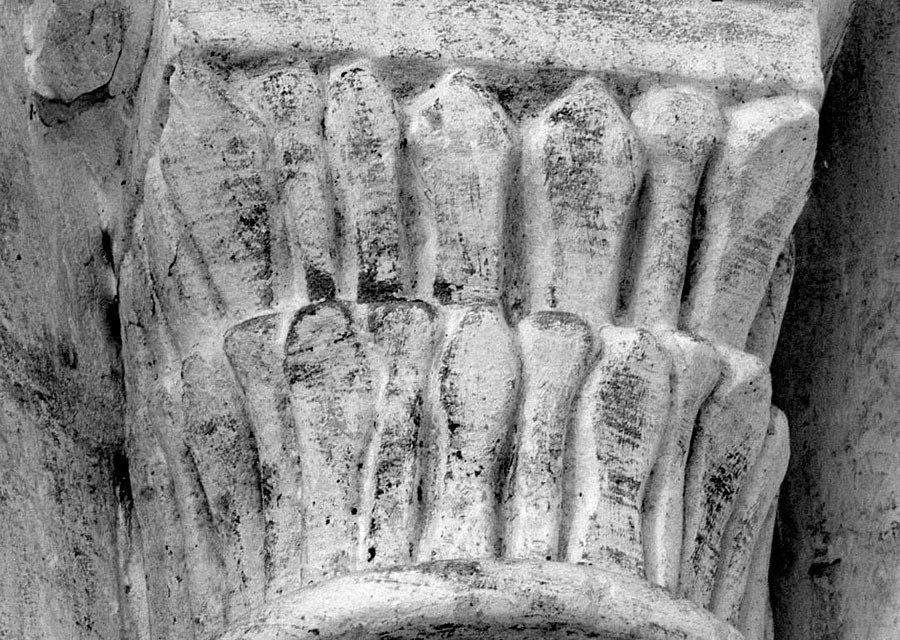

Phase 12 - 1120s [1122] - tower I
nave arcade arches on the north built with the inserted opening in the north arm for an aisle that was probably built as the roof-flashing groove shows the outline of the aisle roof; also above the first nave pier WS3 a splayed impost supporting a pointed arch that matches the arch on the north; he;ped to stabilise the tower base for the intended tower and spire
Load More...
|
-
- Grossteste - 1120s [1122]
- Mogneville- Phase 12
- Saint-Denis - tower I
- Core template
-
- Grossteste - 1120s [1122]
- Mogneville- Phase 12
- Saint-Denis - tower I
- Core template
-
- Unknown - 1120s [1122]
- Mogneville- Phase 12
- Saint-Denis - tower I
- total uncertainty
-
- Unknown - 1120s [1122]
- Mogneville- Phase 12
- Saint-Denis - tower I
- total uncertainty
|

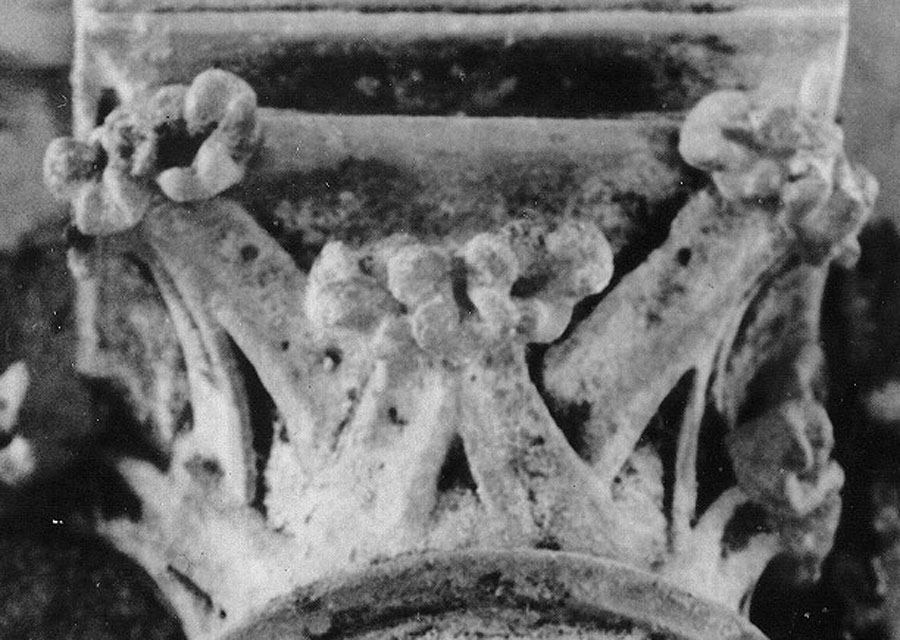

Phase 17 - 1240s - south
removal of south apsidiole, replaced with double square bays.
|
-
- Unknown - 1240s []
- Mogneville- Phase 17
- Saint-Denis - south
- total uncertainty
-
- Unknown - 1240s []
- Mogneville- Phase 17
- Saint-Denis - south
- total uncertainty
